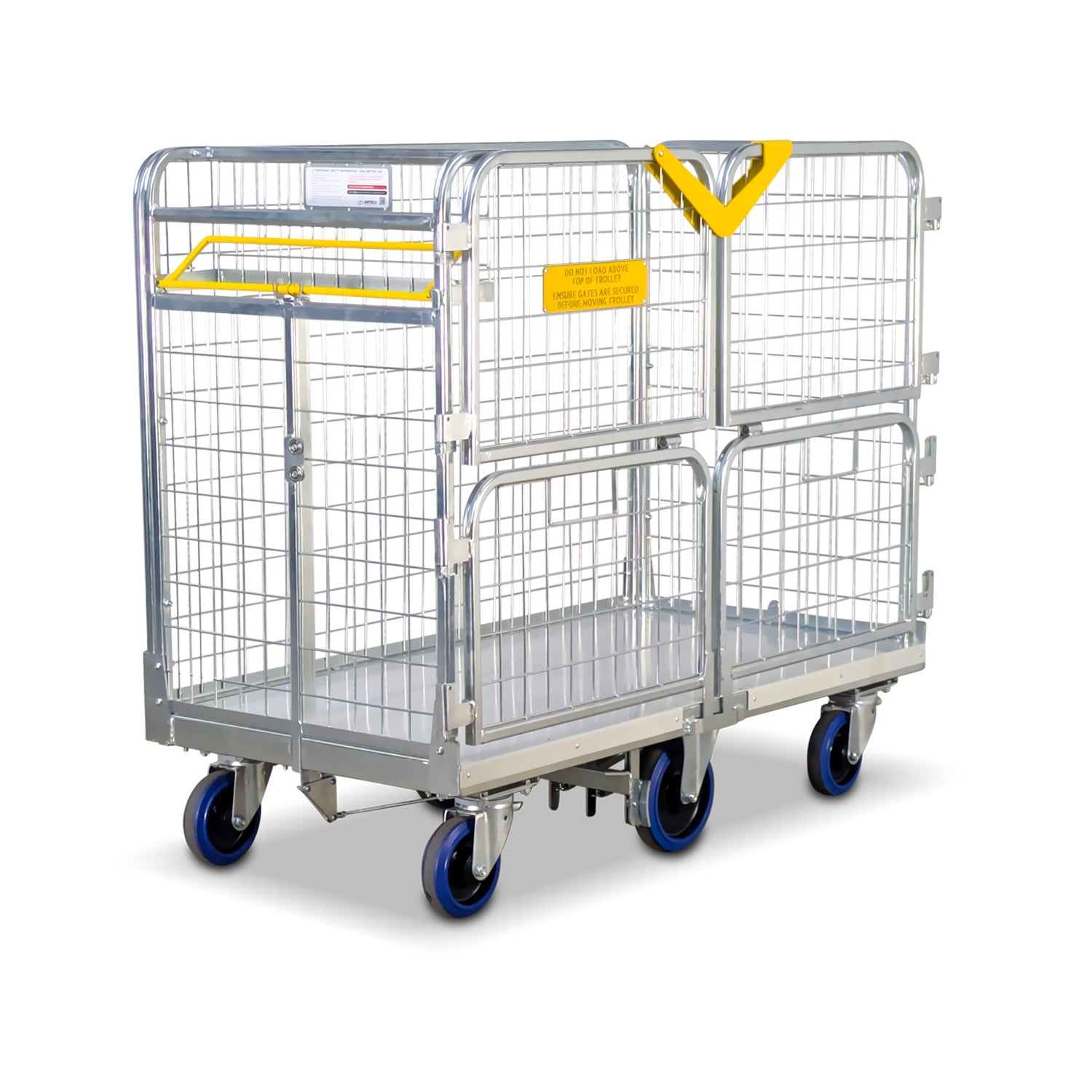

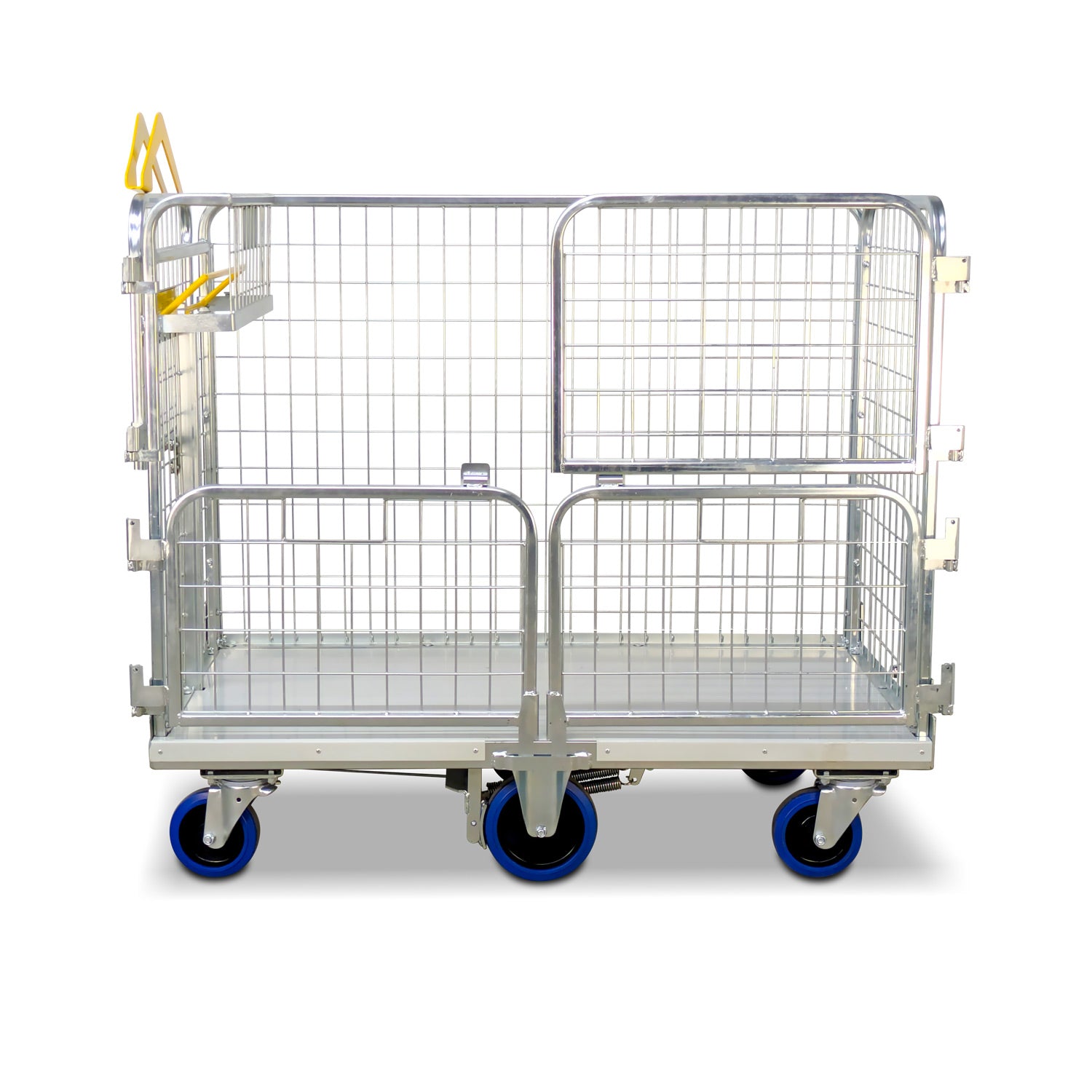

6 Wheel mesh cage trolley with deadman brake. 1,400mm(L) x 700mm(W) x 1,200mm(H)

SKU: TRS04-01

Built for parcel handling, storage, and distribution, this trolley features a deadman brake that locks automatically when stationary and a 6-wheel zero-turn design for tight spaces. Four 270° fold-back, magnetically latched doors allow top access while preventing items from falling below. With a 300kg capacity and maintenance-friendly build, it’s efficient and durable.

1,400mm(L) x 700mm(W) x 1,200mm(H)
656
300kg

$1,30400
Shipping and GST calculated at checkout.
This is a special order product

Contact us to place your order for this item

Fast shipping & pick up
Quality guaranteed
Great support

Description

Engineered for parcel management, storage, and distribution, this 6-wheel mesh cage trolley delivers superior safety, access, and manoeuvrability in busy warehouse and parcel processing environments. Its unique four-door configuration allows operators to access the top half of the cage without risking smaller items falling from the bottom section. Each door folds back a full 270 degrees and is magnetically latched when open, ensuring they stay completely out of the way during loading and unloading.

The integrated dead-man brake system automatically engages when the trolley is stationary and handle is released, holding it securely in place while goods are being loaded, sorted, or picked. The 6-wheel setup provides true zero-turn handling, making it perfect for tight aisles, docks, and parcel processing areas. With a 300kg load capacity and a practical footprint of 1,400mm (L) x 700mm (W) x 1,200mm (H), it offers excellent volume without compromising manoeuvrability. Designed with maintenance in mind, it ensures long service life and reduced downtime.



  • 1,400mm(L) x 700mm(W) x 1,200mm(H)
  • Dead-man brake system for automatic stopping
  • 6-wheel zero-turn manoeuvrability
  • 300kg capacity, maintenance-friendly design

Specifications

  • Outer dimensions
    1,400mm(L) x 700mm(W) x 1,200mm(H)
  • Fits through standard doorways
    Yes
  • Unit weight
    86.5 kg
  • Load capacity
    300kg
  • Castors & wheels
    4x Swivel castors with 150mm blue rubber wheels
    2x Rigid 'deadman' braked castors with 200mm blue rubber wheels
  • Frame material
    Steel
  • Finish
    Zinc plated frame with powder coated base

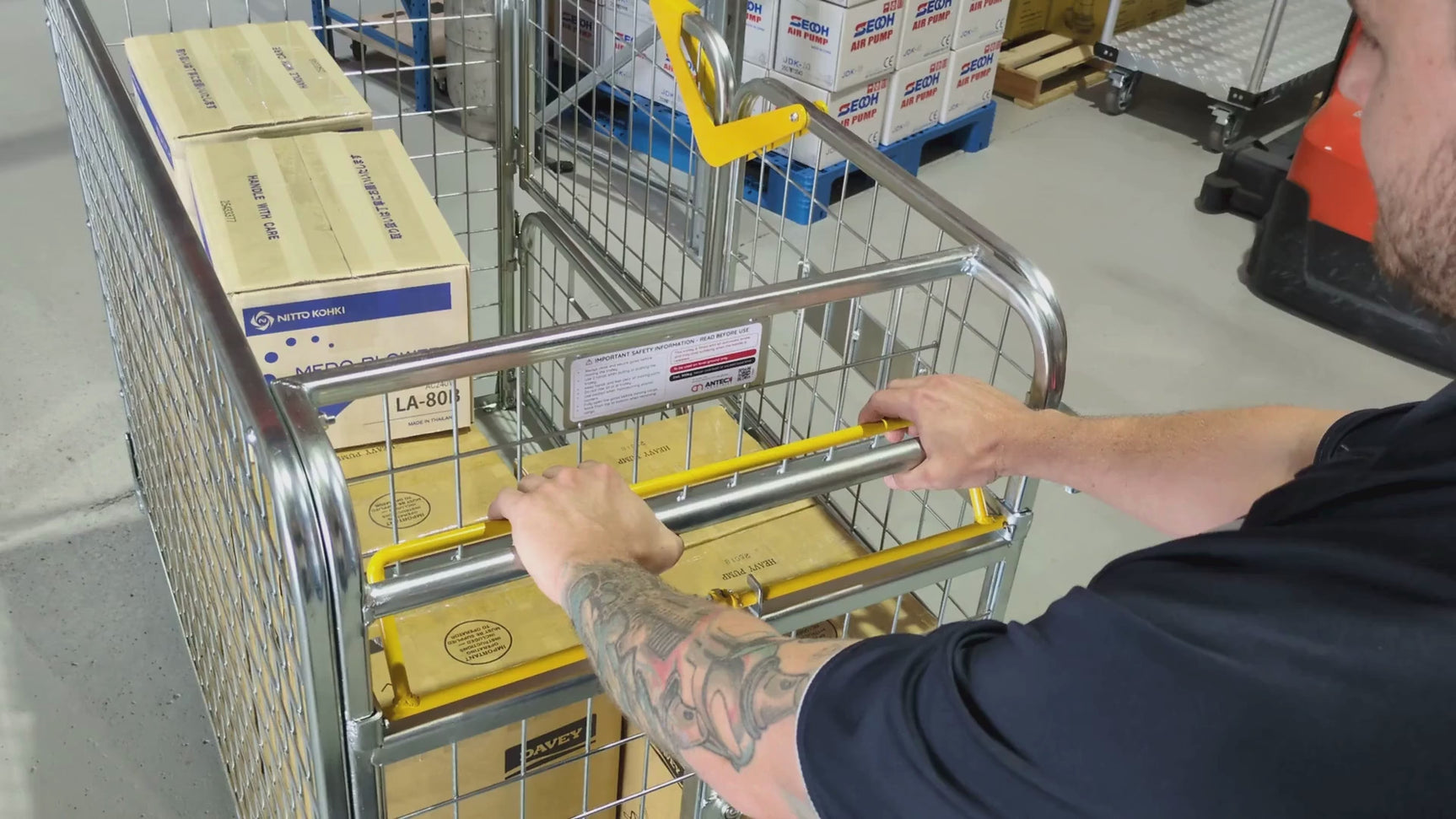

mesh trolley with deadman brake

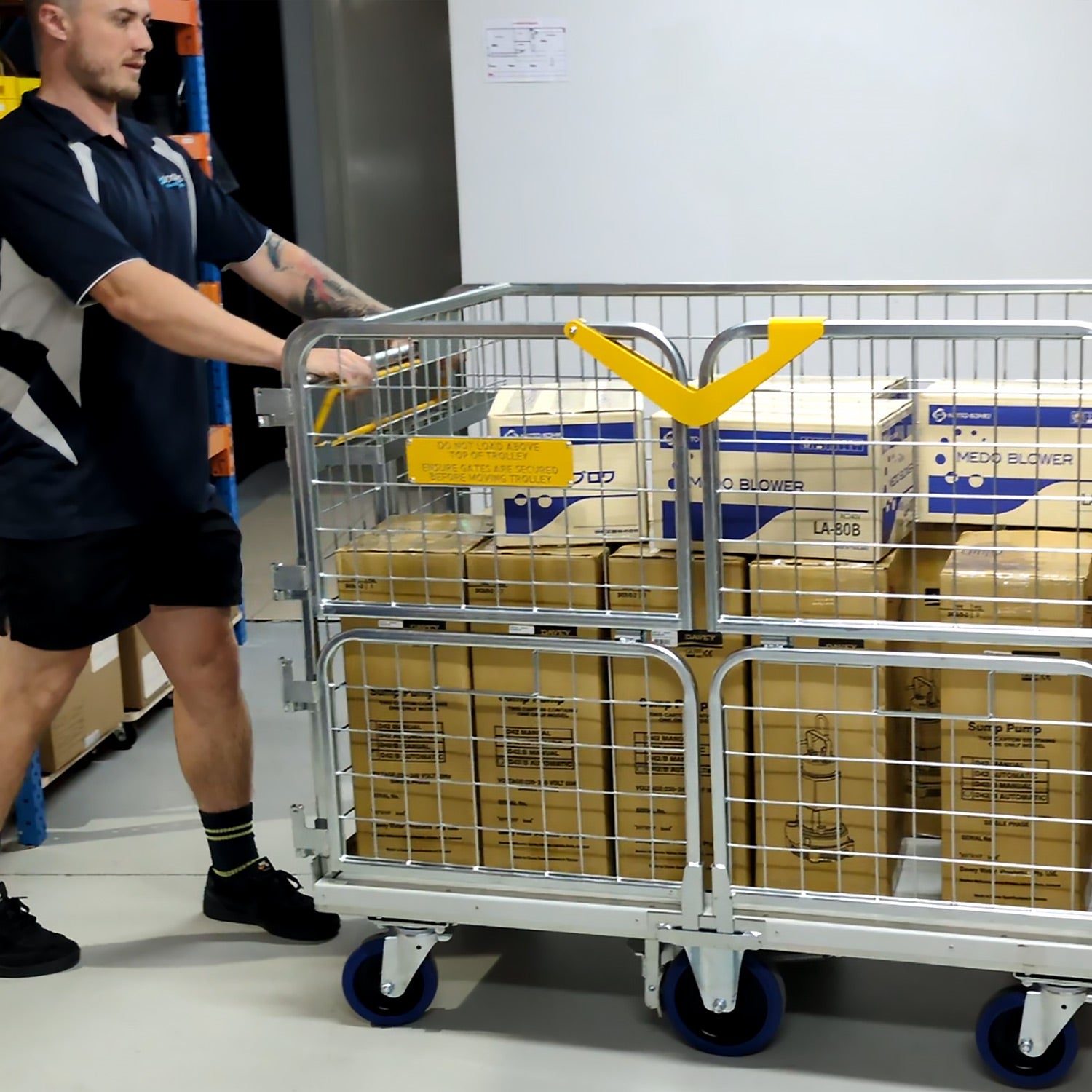

person pushing cart in a warehouse

Automatic brake system

The innovative deadman brake system activates automatically when the handle is released, engaging both centre wheel brakes without any manual input. This prevents unwanted movement during loading and unloading, creating a safer environment for operators.

close up of a mesh cart door

Safety through smart access control

Designed with an additional safety interlock to prevent accidental movement - it cannot be pushed or steered unless all four doors are closed. When the doors are folded back and latched open, they physically block access to the deadman brake release handle. This ensures the brake remains engaged during loading and unloading, protecting operators and preventing unintended movement.
